Descriere

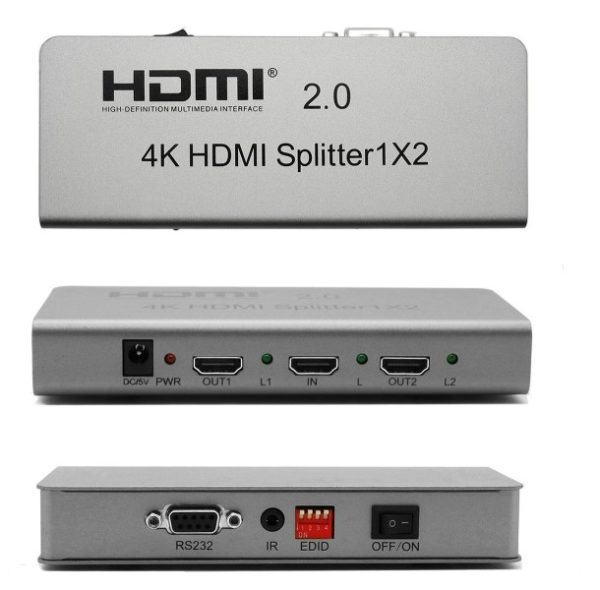

Spliter(splitter, multiplicator) HDMI 2.0 4K 1 intrare 2 iesiri
– versiune HDMI 2.0, HDCP 2.2
– suport 3D, CEC, DTS, Dolby-trueHD, DSD
– IR extension, EDID management, RS232
– rezolutie max. 3840×2160/60Hz
– bit rate 6Gbps, TMDS 600MHz
– distanta intrare pentru Full HD(1920×1080/60Hz) si 4K (3840×2160/60Hz) cu cablu HDMI 26AWG: max. 8m, iesire max. 8m
– alimentator 5V 1.5A inclus
DIP EDID Switch Description：
DIP 1 2 3 4
X 0 0 0 ： copy output1 EDID only
X 0 0 1 : EDID MIX
X 0 1 0 : EDID Download (RS232)
X 0 1 1 : 4K X 2K 30HZ
X 1 0 0 : 4K X 2K 60HZ
X 1 0 1 : 1080P 3D 2ch
X 1 1 0 : 1080P 2D 2ch
X 1 1 1 : 1080P 2D 5.1ch
1 is used for upgrades, 1 is upgrading mode, 0 is normal working mode (switch down is 1, otherwise is 0)
Ambalare: box 1 set.
